Model:FY-N240
Product size:240mm*240mm
Folded size:120mm*120mm
Color printing device:Without color

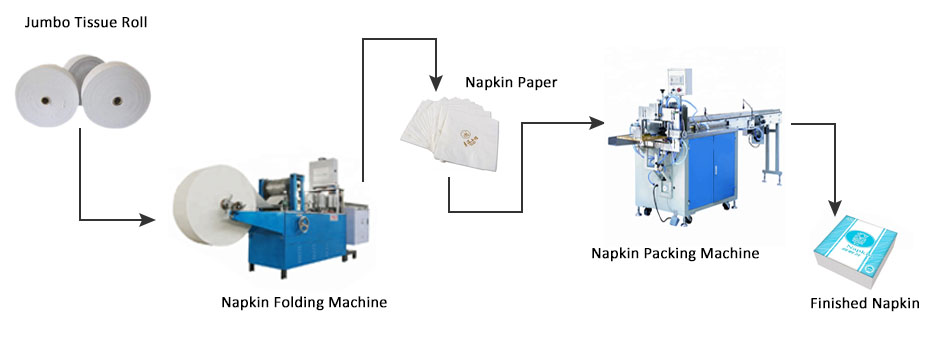

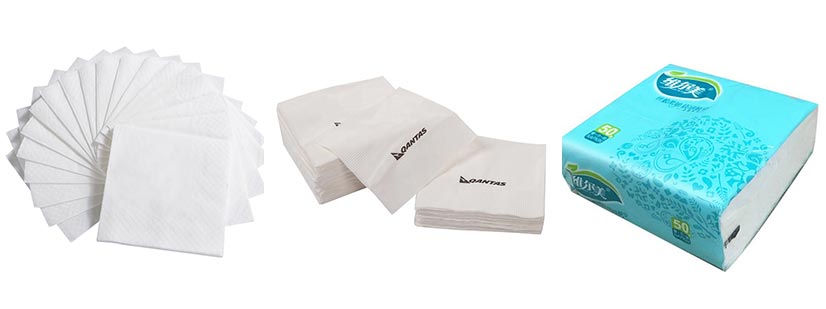

FY-N240 napkin machine can produce V folding (1/4) square paper napkins and the wallet, N-type (1/6),M-shaped (1/8) napkins (adjust able width,single or multi color printing can be customized),the first longitudinal fold,horizontal fold after forming,embossing according to customer demand custom (can add the embossing patterns of words or factory Logo). This machine has automatic counting,automatic thermostat,adjustable speed. Compact structure,accurate counting,beautiful appearance,smooth running,fully functional,is non-woven paper products processing and processing of essential products.
1.Napkin machine
2.Semi-automatic napkins packing machine
1.The whole machine frequency control, the unwinding adopts stepless speed regulation, and the function parameters are adjustable;
2.It can produce 1/4 or 1/6 or 1/8 fold according to requirements. Other folding methods can be specified;
3.Can be equipped with color printing device, using flexographic printing;
4.Pneumatic paper feeding device;
5.Automatic counting function;
6.Paper break automatic shutdown system
7.Fast production speed and low noise, suitable for home production.
|
Model |
FY-N240 |
|
Raw paper diameter |
Max 1100 mm |
|
Finished size |
240*240 mm |
|
Dimensions folded |
120*120 mm |
|
Original core inner dia |
76.2 mm (standard) |
|
Embossing rollers |
Steel roll to woolen roll |
|
Counting system |
Automatic electronic counting |
|
Control system |
Frequency control, electromagnetic governor |
|
Transmission |
6# chain |
|
Total Power |
4 kw |
|
Production speed |
600-800 sheets/minute |
|
Voltage (customized) |
3 Phase 380V,50HZ |
|
Machine dimensions |
3200*1350*1800 mm |
|
Weight |
1100 kg |
