Model:FY-4L
Capacity:130-180m/min
Finished Facial Undfold Size:200*200mm/200*210mm/210*210mm
Finished Facial Fold Size:200*100mm(customized)

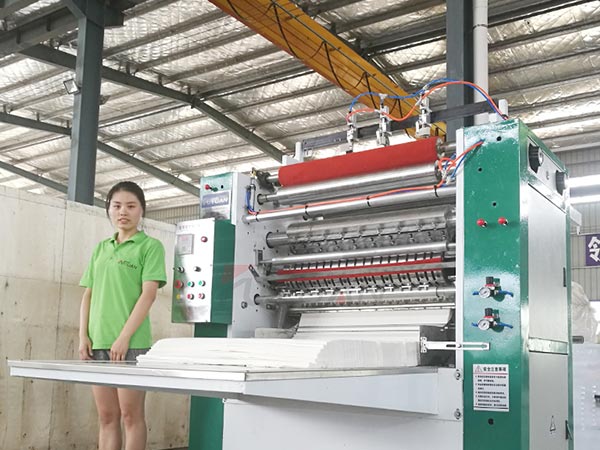

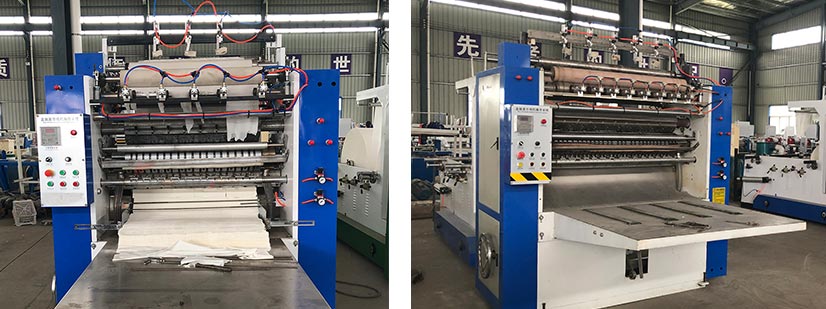

The FY-4L Automatic Facial Tissue Paper Making Machine is designed for manufacturers seeking stable production, high efficiency and consistent product quality. The machine adopts advanced vacuum adsorption folding technology to produce V-fold interfold facial tissues with precise dimensions and smooth dispensing.
This production line is suitable for manufacturing boxed facial tissues, soft pack facial tissues and pop-up tissues for supermarkets, hotels, restaurants, offices and household markets.
Equipped with PLC intelligent control, automatic counting and high-speed cutting systems, the machine significantly reduces labor costs while improving production efficiency. Different embossing patterns, tissue sizes and packing solutions can be customized according to customer requirements.
The production line operates through the following fully automatic process:
Jumbo Tissue Roll
↓
Automatic Unwinding
↓
Embossing (Optional)
↓
Vacuum Folding
↓
Interfold Cutting
↓
Automatic Counting
↓
Finished Tissue Output
↓
Automatic Box Packing Machine
↓
Finished Products
The complete production line minimizes manual operation and guarantees consistent product quality throughout the manufacturing process.
1.Facial tissue paper machine
2.Facial paper packing machine
|
Item |
FY-4L |
|
Raw Paper Weight |
12-30g/m2 tissue roll |
|
Raw Paper Width |
800 mm |
|
Raw Paper Diameter |
1300 mm |
|
Paper Core Diameter |
76.2 mm |
|
Finished Facial Size |
200mm*200mm |
|
Upper Blade |
Pneumatic spiral blade |
|
Host Power |
3 kw |
|
Folding |
Vacuum absorption |
|
Vacuum System |
7.5 kw |
|
Controller |
Electromagnetic speed |
|
Production Speed |
130-180 m/min |
|
Cutting System |
Pneumatic point cut,full cut |
|
Counting |
Automatic |
|
Paper Broken |
Photoelectric eye |
|
Voltage |
AC380V,50HZ |
|
Blank Lines |
Steel to steel, Independent adjustment |
|
Air pressure |
0.67Mpa (prepared by user) |
The machine produces V-fold facial tissue, boxed facial tissue, soft pack facial tissue and interfold facial tissue.
Yes. Both unfolded and folded tissue sizes can be customized according to your market requirements.
Yes. It is suitable for virgin pulp tissue paper, bamboo pulp paper, recycled tissue paper and mixed pulp tissue rolls.
Yes. We provide complete facial tissue production lines including folding machine, automatic packing machine and carton packing machine.
We offer factory layout design, machine installation, operator training, commissioning and lifetime technical support.
Our tissue converting machines have been exported to customers in Asia, Africa, South America, the Middle East and Europe.
Whether you are building a new tissue factory or upgrading your existing production line, Fuyuan Machinery provides complete facial tissue converting solutions tailored to your business.
