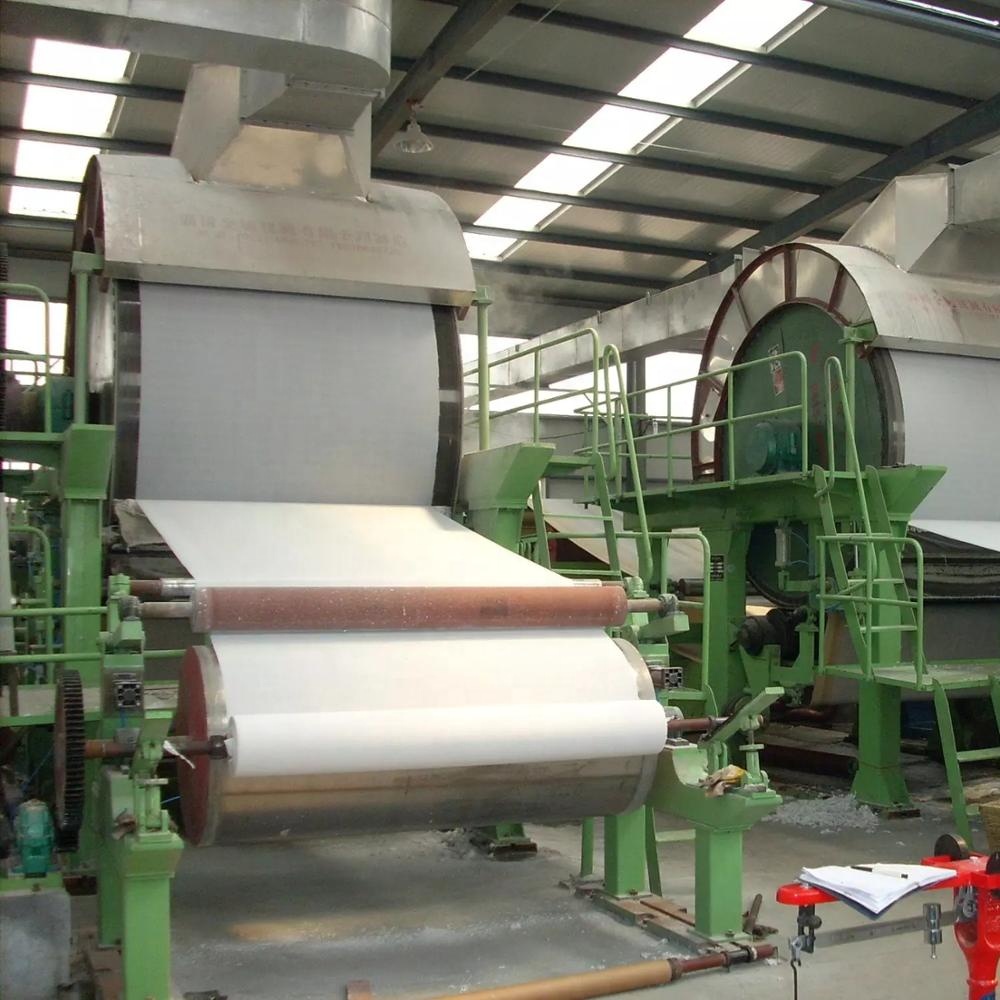

Model:1760
Capacity:3-4 tons
Gram weight:13-30g/㎡
Raw material:waste paper or pure wood pulp
Follow the national policy,our company developed serial environmental protection paper making machine: 3200mm, 2400mm, 1880mm,1575mm,1092mm, 787mm, single cylinder and mesh machine. Double cylinder and mesh machine, Fourdrinier machine,Short wire paper machine, Pulping equipment.This serial can make top-medium-low level tissue (napkin), Packing paper ,Corrugated paper, Printing paper from waste paper; can also make paper from body pulp.They are fire choice in the paper making industry.
1.Pulping system
2.Molding system
3.Drying system
|
Machine Model |
1760 |
|
Paper Width(mm) |
1760mm |
|
Voltage |
380V 50HZ |
|
Power |
180kw |
|
Output |
3-4 T/D |
|
Raw material |
Waste Paper or Virgin Pulp |
|
GSM |
13-30g/㎡ |
|
Working speed |
40-60 m/min |
|
Power Configuration |
380V 50HZ |
|
Warranty |
1 Year |
|
Drive way |
AC frequency conversion speed regulation. |
|
Outline Dimension |
24m*6mm*4mm |
|
Machine Weight |
30000KG |
