Henan Fuyuan Machinery Manufacturing Co., Ltd

Henan Fuyuan Machinery Manufacturing Co., Ltd located in Zhengzhou City, Henan Province. Our factory is established in 1984 with rich experience in paper making machine, paper processing machine and paper pulp molding machine. Our main products include toilet paper rewinding machine, facial tissue machine, napkin making machine, paper tube machine, toilet tissue machine, kraft paper machine, different capacity paper egg tray and molded pulp packaging production line and other grouped equipment.

Hot Products

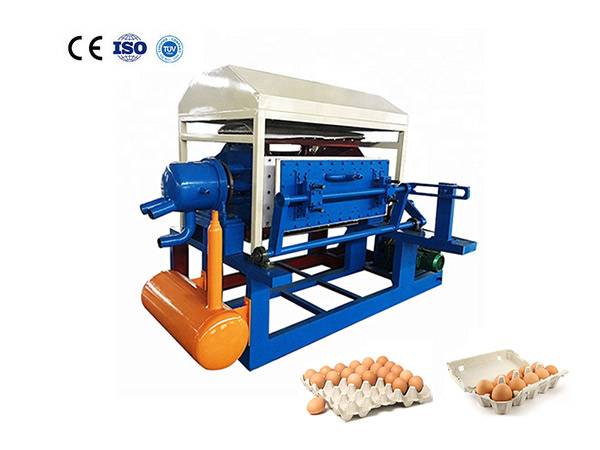

Egg Tray Carton Making Machine

Model:Fy-3*4

Capacity:2000pcs/Hour

Mould:Customized

Dryer:Natural Drying, Brick Kiln Drying, Metal Drying

View More

Napkin Tissue Making Machine

Model:FY-N330

Product size:330mm*330mm

Folded size:165mm*165mm

Color printing device:Two color

View More

Paper Tube Machine

Model:FY-2150A

Number of winding paper layers:3-16 layers

Paper tube diameter:20-100mm

Paper tube thickness:1-8mm

View More

Toilet Paper Rewinding Machine

Model:Fy-R1575

Capacity:2 Tons/8hours

Embossed Pattern:Customized

Automatic:Semi Automatic Production Line

View More

Facial Tissue Making Machine

Model:FY-3L

Speed:130-180m/min

Finished Facial Unfold Size:200*200mm/200*210mm/210*210mm

Finished Facial fold Size:200*100mm (customized)

View More

Automatic Paper Cup Machine

Model:FYC-01.

Speed:90-100 PCS/minute.

Cup Size:2.5~16oz.

Material:One or Two side PE coated paper,160~350gsm.

View More

Introduction to the production process of egg tray machine production line

December 31 .2021

The egg tray machine production line is a waste paper recycling production line. The raw materials are waste paper products, mainly waste paper boxes and waste corrugated paper. The egg tray production line is divided into three systems: pulping system, forming system, and drying system. Pulping system: The main pulping equipment is a pulper. The function of the pulper is to convert waste paper boxes into pulp under hydraulic action. Then our production preparations require the construction of three tanks, two above-ground tanks and one underground tank. The yellow tank on the ground is the tank for storing pulp. The pulp in the pulper will flow into the pulp storage tank, and then the pulp concentration will be adjusted in the pulp storage tank. When the slurry tank opens the valve, it will flow into the underground slurry supply tank. Forming system: The pulp in the underground slurry supply tank is pumped to the forming machine by the slurry pump. Under the action of the vacuum pump, the forming machine absorbs the paper fibers in the forming machine, and the paper fibers are formed on the mold, and then the air compressor and the vacuum pump cooperate to transfer the...

FY-1*3 1000pcs/hour Installation Guide

December 31 .2021

1.The construction of slurry pool is completed and the site land is hardened and leveled. 2.Determining the position of the hydrapulper according to the plane layout Diagram, Pulp outlet ,Release the finished pulp directly to the pulp storage tank 3.A 900 diameter agitator is arranged on the pulping tank. 4.Adjust pulp in the pulping tank and put it in the Pre-emptive pool（pulp tank before the machine),Layout of diameter 1500 agitator and Slurry pump on the Pre-emptive pool 5.Slurry pump exit Connecting molding machine exit 6. The moulding machine is arranged according to the layout of the plane, and the outlet A is the Overflow port, Connecting pipe back to the Pre-emptive pool. B exit is pulp entrance,connect the Slurry pump exit , D entrance connect the air compressor entrance, C entrance connect the vacuum pump entrance, Molding machine E connecting vacuum pump entrance 7.The vacuum pump and the air compressor are reasonably arranged according to the scene and the molding machine. The vacuum entrance use Piped connect to the water pool.

Toilet paper roll production line

March 18 .2022

1. PLC used in automatic rewinding, automatic delivery of finished products, immediately reset rewinding, automatic trimming, spray glue, sealing synchronization once completed. Instead of the traditional waterline trimming, to achieve a new trimming sticky tail technology, finished products left 10mm-20mm tail, easy to use. To achieve a loss of paper tail, thereby reducing costs. 2. PLC used in the finished product in the rewinding process before the first loose, to solve the finished product for a long time storage, loose core phenomenon. 3. the application of the original paper monitoring system, broken paper automatically shut down. In the high-speed operation of the process, real-time monitoring of the base paper to reduce the loss caused by broken paper to ensure the normal operation of high-speed equipment. The jumbo rolls are made into long paper rolls by embossing and slitting. Then our paper cutting machine can cut the long paper rolls into short small paper rolls and pack them with a packing machine. flowing to the market.

Why choose Fuyuan paper tube machine?

March 10 .2022

We are a famous paper product processing equipment factory. The paper tube machine produced has been welcomed by companies at home and abroad. Paper tubes are mainly used in the textile industry and packaging industry. Our factory can make paper tubes of different sizes according to the different needs of customers. The provided paper tube production line is designed and manufactured with the highest quality materials and advanced technology to meet international quality standards. Different certificates prove that the machine is suitable for the production requirements of different countries, we have applied for ISO, CE, etc. certificates. We provide various specifications of paper tube production lines to meet the requirements of various customers. As a customer-oriented organization, we always strive to deliver high-quality paper tube production lines to our valued customers in a timely manner at leading market prices. Machine Features: 1. High function, higher output, super strong tube 2. PLC control system 3. Pneumatically controlled take-up belt tension 4. Color human-computer interaction panel 5. Adjustable cut size and rewind size
